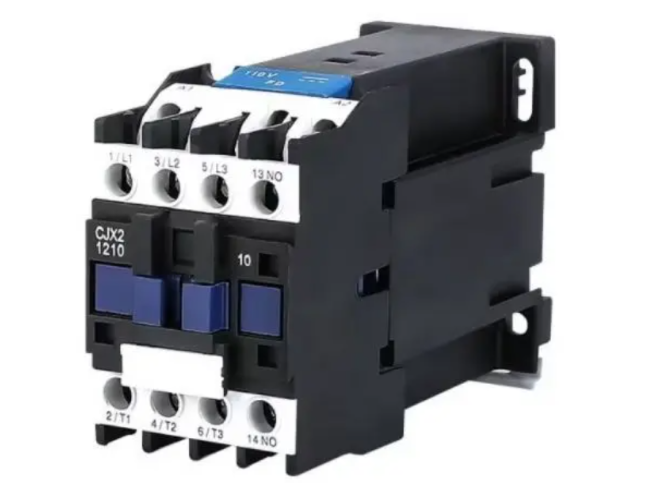

High-frequency switching environments push electrical components to their absolute limits. Standard operational parameters quickly fall apart, and component fatigue accelerates exponentially under constant load cycling. Engineers often encounter a stark difference between ideal datasheet claims and actual field conditions. Destructive forces like repetitive arcing, rapid thermal fatigue, and contact bounce significantly reduce equipment reliability. We must address this gap to prevent catastrophic system failures. This article provides a strict engineering and procurement framework to maximize the service life of a DC contactor. You will learn how to shift away from reactive fault management toward proactive lifecycle optimization. We will cover aggressive derating strategies, proper material selection, and mandatory arc suppression techniques. By following these guidelines, you can ensure your switching applications remain robust, efficient, and exceptionally reliable over time.
Datasheet Reality: "Mechanical life" and "Electrical life" are drastically different; frequent switching demands aggressive load derating to bridge this gap.
Arc Suppression is Mandatory: Inductive load kickback can generate voltage spikes exceeding 8x the nominal rating, requiring matched flyback diodes or custom arc suppressors.
Material Matters: Selecting the exact contact material based on current loads (e.g., gold-plated for <100mA, silver alloys for high power) prevents premature oxidation and pitting.
Mechanical Integrity: Opting for contactors with anti-bounce mechanisms and self-lubricating structures (e.g., molybdenum disulfide) delays physical degradation.
Systematic Maintenance: Simple visual inspections and avoiding common myths—like repurposing spare poles on degraded multi-pole units—prevent cascading catastrophic failures.
Datasheets often boast millions of operational cycles. They base these impressive numbers on mechanical lifespan alone. This metric assumes the device operates under zero electrical load. You will see a drastically different reality in the field. Electrical lifespan drops significantly when you apply full rated voltage and current. Frequent switching under load dramatically reduces the practical life of any component. You must account for this gap during initial system design. Failing to do so guarantees premature equipment failure.
High-frequency actuation introduces two primary destructive forces. First, it causes severe thermal cycling stress. Rapid temperature swings create a constant $\Delta T$ environment. This forces internal materials to expand and contract repeatedly. Such movement causes severe mechanical fatigue over time. Second, repetitive arcing leads directly to contact erosion. Every time a circuit breaks, it pulls an arc. This intense heat vaporizes microscopic amounts of surface material. You lose valuable contact mass with every single switch.
Procurement teams often focus solely on initial hardware prices. Upgrading to a higher-spec DC contactor requires a larger upfront investment. You must position this component cost against the massive financial impact of unexpected line stoppages. Emergency replacement labor consumes maintenance budgets quickly. Lost production time costs far more than premium electrical hardware. Investing in advanced peripheral protection saves money over the equipment lifecycle. We recommend prioritizing reliability over cheap initial procurement.
Operating components at their maximum ratings is incredibly dangerous. High-cycle environments require aggressive load derating protocols. You must operate well below maximum voltage and current ratings. This strategy significantly flattens the degradation curve. It reduces heat generation and minimizes arc intensity. Many engineers derate components to 50% or 70% of their nominal capacity. This provides a critical safety margin for continuous, rapid actuation.
Contact material dictates how well a switch handles specific loads. Choosing the wrong alloy guarantees rapid failure.
Micro-loads (<100mA): Standard silver contacts fail quickly here. Silver naturally oxidizes in normal air. Micro-currents do not generate enough arcing heat to burn off this oxide layer. You must specify gold-plated contacts or completely sealed units for sensitive control signals.
Power loads: Heavy currents require completely different materials. Look for advanced silver alloys. Manufacturers engineer these specific blends to resist micro-welding. They also prevent severe material transfer during intense arcing phases.
Contact Material Suitability Table
Material Type | Ideal Load Range | Primary Advantage | Common Failure Mode if Misapplied |
|---|---|---|---|
Gold-Plated | 0mA - 100mA | Zero oxidation; reliable signal transfer. | Gold layer vaporizes instantly under high current. |
Silver Nickel (AgNi) | Medium Power | Good balance of arc resistance and conductivity. | Welding occurs under heavy inductive surges. |
Silver Tin Oxide (AgSnO2) | High Power / Inductive | Exceptional resistance to welding and material transfer. | High contact resistance; unsuitable for weak signals. |
Physical construction matters just as much as electrical ratings. Highlight the importance of anti-bounce mechanisms. When a switch closes, it often bounces slightly before settling. The longer the first and second bounce last, the higher the risk. Extended bouncing creates sustained micro-arcing. This leads directly to localized micro-welding. Prioritize units featuring optimized lever ratios. Look for wiping or sliding actions during closure. These mechanical movements provide essential self-cleaning. They scrape away oxidation and carbon buildup automatically. Self-lubricating structures utilizing molybdenum disulfide also delay physical degradation significantly.
Inductive loads like motors and solenoids store immense magnetic energy. When you open the switch, this magnetic field collapses instantly. We utilize the $L \, di/dt$ principle to explain this phenomenon. The rapidly changing current forces a massive reverse-voltage spike. These spikes routinely exceed 2000V on a standard low-voltage system. They seek the easiest path to ground, which is often right across the opening switch. This destructive high-voltage arc destroys contacts instantly. It melts alloys and leaves heavy carbon scoring behind.
You cannot ignore arc suppression in high-frequency applications. Implementing external protection is mandatory.
Flyback / Snubber Diodes: These are highly cost-effective for standard applications. You place them directly across the inductive load. They provide a slow energy dissipation loop for the collapsing magnetic field. This prevents the high voltage from reaching the main switch.
Custom Arc Suppressors: Heavy industrial applications demand robust solutions. We strongly advocate for dedicated arc suppression modules here. You should match these directly with the switch manufacturer. This guarantees exact overvoltage mitigation for your specific hardware.
You can also utilize parallel capacitors for effective protection. Place small, properly rated capacitors directly across the main contacts. They absorb the instantaneous energy surge during the initial break phase. This absorbs the voltage spike before an arc can form. It drastically reduces the thermal damage inflicted on the metal surfaces.
Frequent switching prevents any device from reaching a steady thermal state. The component constantly heats up and cools down. We call this the thermal cycling dilemma. Constant expansion and contraction heavily stress internal solder joints. Semiconductor elements and delicate mechanical springs suffer greatly. Over time, these microscopic movements cause materials to crack or shear completely.
Power-heavy setups require serious thermal management. Passive cooling alone is rarely enough for rapid-cycle equipment. Outline your need for active thermal control early in the design phase.
Cooling Strategy Comparison Chart
Cooling Strategy | Implementation Methods | Best Use Case | Limitations |
|---|---|---|---|
Passive Cooling | Natural convection, large heat sinks, standard enclosures. | Low-frequency switching; well-ventilated rooms. | Cannot dissipate rapid thermal spikes; relies on ambient air. |
Active Cooling | Forced air fans, liquid cooling loops, high-grade TIMs. | High-frequency, heavy power applications; sealed cabinets. | Requires external power; introduces moving parts (fans). |
Engineers face a difficult trade-off regarding switching speed. Higher frequencies reduce electrical ripple effectively. However, they drastically increase switching heat loss. Every cycle generates a small burst of heat. You must manage this thermal load carefully. We recommend exploring adaptive or dynamic switching controls. These smart systems monitor internal temperatures continuously. They adjust the switching frequency based on real-time thermal data rather than relying on fixed settings. This dynamic approach balances efficiency with component survival.
Poor installation practices ruin high-quality hardware. Loose connections increase electrical resistance dramatically. Improper wire gauges do the exact same thing. This elevated resistance causes severe localized heating at the terminals. High terminal heat easily mimics genuine internal contact failure. It melts plastic housings and degrades internal springs. You must emphasize strict torque-spec adherence during installation. Always use vibration-resistant mounting hardware to prevent loosening over time.
Never apply full electrical power immediately after installation. We strongly advise a strict pre-load commissioning routine.
Isolate the main power circuit completely.
Apply low-voltage control power to the actuation coil only.
Run the device through several dozen empty cycles.
Listen for smooth actuation and verify solid magnetic draw.
Inspect for any mechanical binding or uneven seating.
Only introduce the main electrical load after passing these checks.
Field technicians often attempt quick fixes to keep lines running. One common hack involves multi-pole units. When one pole degrades, they move the load to an unused "spare" pole on the same unit. We strongly warn against this dangerous practice. The degraded pole generates significant arc debris. It creates fine metallic dust inside the housing. This conductive debris will inevitably migrate across the internal partitions. It will cause the newly wired pole to short circuit or fail very quickly. You risk causing a much larger, cascading catastrophic failure.
Extending component life requires a comprehensive, multi-disciplinary effort. You cannot rely on a single physical upgrade. Success requires correct initial sizing through aggressive derating. It demands robust physical protection via custom arc suppression. It also relies heavily on disciplined, flawless installation practices. Treat your high-power switches as part of a holistic lifecycle system rather than disposable isolated commodities. By viewing them this way, you protect your broader infrastructure. As a next step, encourage your procurement teams to consult directly with application engineers. Ask them to run precise lifecycle simulations based on your exact switching frequency, inductive load profiles, and ambient operating environment.
A: Mechanical life refers to the number of physical actuations the internal springs and hinges can survive without power. Electrical life is the practical lifespan under nominal voltage and current, factoring in arc erosion and thermal stress.
A: Low currents (e.g., under 100mA) do not generate enough heat or arcing to burn off natural oxidation on standard silver contacts. Switching to gold-plated contacts prevents this oxidation entirely.
A: While specific ratios depend on the load type (inductive loads require heavier derating than resistive), general engineering best practice suggests operating at 50% to 70% of the maximum rated load for high-cycle applications.
A: Look for localized discoloration (blue or black heat marks) on external terminals. Listen for excessive auditory humming or chattering during actuation. Inspect internally for heavy pitting or thick carbon buildup visible on the actual contact pads.
