In the world of electrical engineering, the need for safe, efficient, and reliable motor control is paramount—especially in medium-voltage applications such as mining operations, manufacturing facilities, water treatment plants, and power distribution systems. Among the many solutions available, vacuum contactors have emerged as a preferred choice due to their exceptional arc-quenching capabilities, long service life, and minimal maintenance requirements.

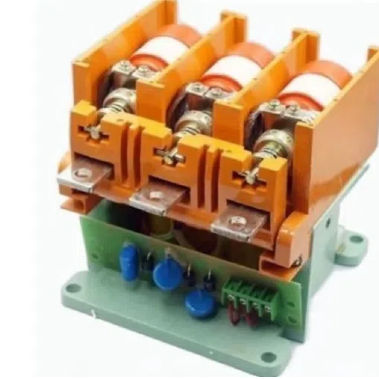

A vacuum contactor is an electrically controlled switch used to make or break electrical circuits under load, specifically in medium-voltage applications ranging typically from 1kV to 15kV. The key distinguishing feature of a vacuum contactor is its vacuum interrupter, a sealed chamber in which electrical contacts operate.
Inside the vacuum interrupter, the arc that forms when the contacts separate is quickly extinguished due to the lack of a gaseous medium. This characteristic gives vacuum contactors a major advantage in terms of longevity, efficiency, and safety when compared to air- or oil-based contactors.
Medium-voltage motors are used for powering heavy-duty machinery in industrial operations. These motors are often subjected to demanding start-stop cycles, high inrush currents, and complex load conditions.
Reliable control of these motors is essential to:
Ensure smooth operation and protect expensive assets
Prevent power system disturbances
Minimize the risk of equipment failure
Optimize energy use and reduce operational downtime
This is where vacuum contactors shine, offering a combination of performance and durability that makes them highly suitable for these critical applications.
The primary function of any contactor is to safely make and break electrical circuits, especially under load. In medium-voltage systems, the electrical arc generated during switching can be intense, posing risks to both equipment and personnel. Vacuum contactors are specifically engineered to handle these challenges due to their sealed vacuum interrupters. These interrupters:
Quickly extinguish arcs at the first current zero crossing, thanks to the absence of ionized gas molecules in the vacuum.
Prevent arc re-ignition because of the vacuum’s extremely high dielectric strength—significantly higher than air or oil—enabling fast recovery of insulation after arc extinction.
Minimize contact erosion, since the arc is shorter in duration and less intense, which in turn protects the contact surfaces and internal components.
The result is safer and more efficient switching that reduces downtime and extends equipment longevity. These qualities are especially critical in industrial environments with frequent switching operations, such as motor starting, capacitor bank switching, and transformer protection, where safety and reliability are non-negotiable.
Contactors operating in harsh or high-load environments are subject to intensive mechanical wear and electrical stress, which over time lead to failure or performance degradation. Traditional contactors using air or oil as arc-quenching media tend to experience:
Faster degradation of contacts due to oxidation and carbonization,
Higher heat accumulation that weakens insulating materials,
And the need for frequent servicing and part replacement.
Vacuum contactors eliminate many of these issues. Their sealed vacuum chamber not only suppresses the arc efficiently but also shields the internal components from external contaminants such as dust, moisture, and corrosive gases. As a result, they:
Perform hundreds of thousands of operations—often over 500,000—without significant deterioration.
Maintain stable electrical characteristics, such as contact resistance and dielectric integrity, throughout their operational life.
Require fewer replacements, resulting in reduced lifecycle costs and less operational disruption.
This extended durability makes vacuum contactors especially suitable for mission-critical applications where high uptime, long service intervals, and cost efficiency are vital—such as in renewable energy plants, mining operations, and petrochemical facilities.
Maintenance is a key factor in determining total cost of ownership. Vacuum contactors:
Have fewer moving parts
Are sealed against dust, moisture, and other environmental contaminants
Do not require oil changes or gas refills
As a result, they are ideal for remote or hard-to-access installations, such as in underground mines or offshore platforms, where regular maintenance can be costly and difficult.
Vacuum contactors are generally more compact and lighter than their air-break or oil-filled counterparts. This provides significant advantages in terms of:
Panel space savings
Easier installation and retrofitting
Lower shipping and handling costs
The smaller footprint also enables the integration of multiple contactors in a single control panel, enhancing system flexibility.
Environmental regulations and workplace safety standards are increasingly strict. Vacuum contactors support these initiatives by:
Operating without oil or SF₆ gas, which can be harmful to the environment
Minimizing arc flash risk due to enclosed, sealed operation
Eliminating the risk of fire or explosion caused by oil-based switching devices
Their inherently safer design helps protect both personnel and equipment.
Vacuum contactors are used in a wide range of industrial and utility sectors, including:
Mining: To control conveyors, crushers, pumps, and ventilation systems operating at medium voltages.
Petrochemical and Oil & Gas: For safe motor control in potentially explosive environments.
Water and Wastewater Treatment: To manage high-voltage pumps and motors that operate around the clock.
Manufacturing: In heavy industries such as cement, steel, and automotive plants, where reliability and precision are critical.
Power Distribution and Utilities: For capacitor bank switching, transformer feeders, and motor starters in substations.
Their versatility and performance make them a go-to solution for mission-critical systems.
As industrial automation and smart grid integration continue to evolve, vacuum contactor technology is also advancing. Modern vacuum contactors may include:
Digital control and monitoring: Integration with SCADA or IoT systems for real-time diagnostics and remote operation.
Built-in protective functions: Such as overload protection, phase loss detection, and contact wear indicators.
Compact modular designs: For improved system integration and simplified maintenance procedures.
These innovations enhance usability, improve efficiency, and support predictive maintenance strategies.
Choosing the correct vacuum contactor for your application involves several key considerations:
Voltage and current ratings: Ensure compatibility with your motor and power system.
Operating environment: Consider factors like temperature, humidity, and vibration.
Duty cycle: Match the contactor’s mechanical and electrical endurance with the expected switching frequency.
Compliance and standards: Look for certification according to IEC, ANSI, or other relevant standards.
Partnering with an experienced manufacturer or supplier is essential to ensure proper specification and long-term support.
As industries seek greater operational reliability, energy efficiency, and compliance with safety and environmental standards, vacuum contactors stand out as a high-performance solution for medium-voltage motor control. Their arc suppression capability, durability, low maintenance demands, and adaptability make them a worthwhile investment for any industrial application.
Whether you're designing a new power distribution system or upgrading an aging infrastructure, vacuum contactors can provide the safety, efficiency, and reliability your operation needs.
